The CMS09 is a Schottky barrier rectifier from TOSHIBA with a peak reverse voltage of VRRM = 30V and an average forward current of IF(AV) = 1.0A. It is suitable for switching mode power supplies, portable equipment and battery applications.

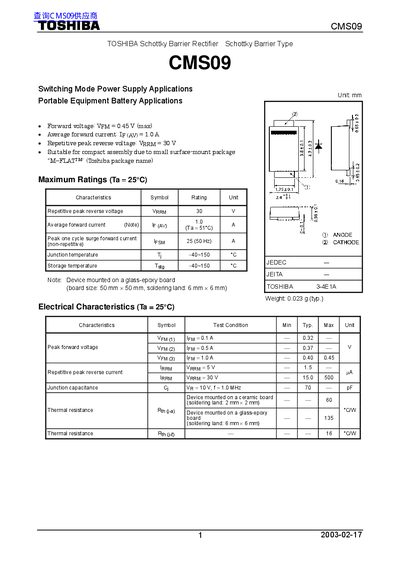

This document is a technical datasheet for the Toshiba CMS09 Schottky barrier rectifier. It specifies key ratings such as a repetitive peak reverse voltage of 30 V and an average forward current of 1.0 A. The device features a small surface-mount 'M-FLAT' package suitable for compact assembly in switching mode power supplies and portable equipment battery applications.
| Repetitive peak reverse voltage | 30 V |
|---|---|
| Average forward current | 1.0 A |
| Forward voltage (max) | 0.45 V |
| Junction temperature range | -40~150 °C |
The typical forward voltage (VFM) at 0.1A is 0.32 V.
No, the document states these products are not intended or warranted for usage in equipment requiring extraordinarily high quality and reliability.
