This document introduces TOSHIBA's CMS08 Schottky Barrier Rectifier, which is suitable for switching mode power supply, portable equipment, and battery applications. Its features include low forward voltage, high average forward current, and repetitive peak reverse voltage. The product is designed in a small surface-mount package, suitable for compact assembly.

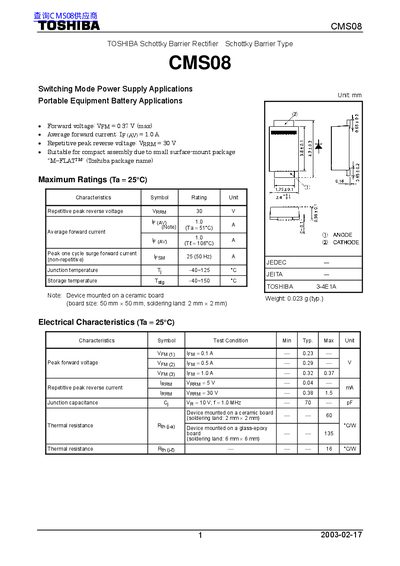

This document is a datasheet for the Toshiba CMS08 Schottky barrier rectifier. It details electrical characteristics such as a maximum forward voltage of 0.37V and an average forward current rating of 1.0A. The device features a small surface-mount 'M-FLAT' package designed for compact assembly in portable equipment battery applications.
| Forward voltage (VFM) | 0.37 V (max) |
|---|---|
| Average forward current | 1.0 A |
| Repetitive peak reverse voltage | 30 V |
| Junction temperature range | -40~125 °C |
The maximum repetitive peak reverse voltage is 30 V.
