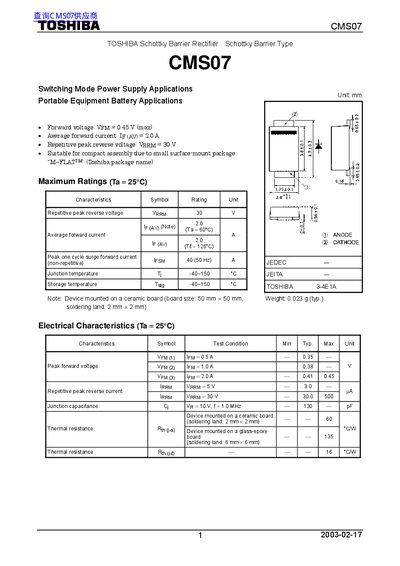

This document describes the features and characteristics of TOSHIBA's CMS07 Schottky Barrier Rectifier. The product is suitable for switching mode power supply applications, portable equipment, and battery applications. Its features include low forward voltage, high average forward current, and moderate repetitive peak reverse voltage. It is suitable for compact assembly.
This document is a technical datasheet for the Toshiba CMS07 Schottky barrier rectifier. It specifies that the device features a forward voltage of 0.45V (max) and an average forward current of 2.0A. The component is designed for switching mode power supply applications, portable equipment battery applications, and compact assembly due to its small surface-mount M-FLAT package.
| Repetitive peak reverse voltage | 30 V |
|---|---|
| Average forward current | 2.0 A |
| Peak one cycle surge forward current | 40 A |
| Junction temperature range | -40~150 °C |
| Weight | 0.023 g (typ.) |
The device supports an average forward current of 2.0 A and a repetitive peak reverse voltage of 30 V.
The junction temperature ranges from -40 to 150 °C, and the storage temperature also spans -40 to 150 °C.
