CMS06 is a Schottky diode produced by Toshiba. It features low forward voltage, high reverse voltage, high frequency, etc. It is suitable for switching power supplies, portable equipment and battery applications.

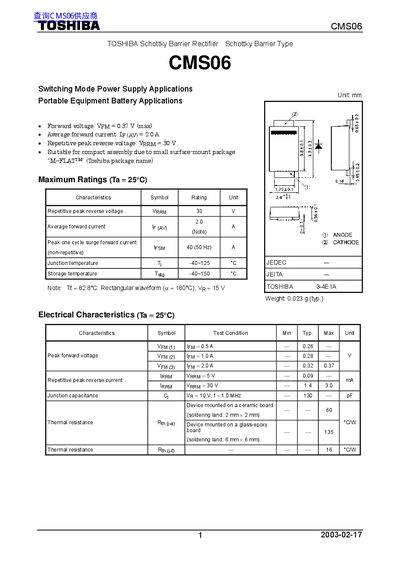

This document is a technical datasheet for the Toshiba CMS06, a Schottky barrier type switching mode power supply component. It specifies key ratings such as a repetitive peak reverse voltage of 30V and an average forward current of 2.0A.
The text provides detailed electrical characteristics including forward voltage drops at various currents and junction capacitance. It also includes handling precautions regarding thermal runaway due to large reverse-current leakage and restrictions on product use for high-reliability applications.
| Repetitive peak reverse voltage | 30 V |
|---|---|
| Average forward current | 2.0 A |
| Peak one cycle surge forward current | 40 A (50 Hz) |
| Junction temperature range | -40~125 °C |
| Storage temperature range | -40~150 °C |
The typical forward voltage (VFM) at 2.0A is 0.37 V.
Schottky barrier diodes have large reverse-current-leakage characteristics which may cause thermal runaway if operating temperature or voltage is improper.
