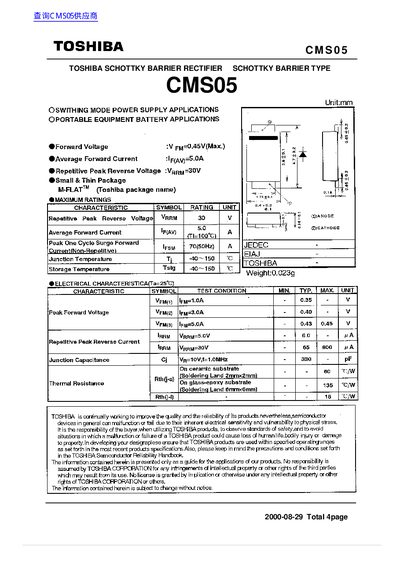

This PDF file is the TOSHIBA SCHOTTKY BARRIER RECTIFIER SCHOTTKY BARRIER TYPE CMS05 product manual, which mainly introduces the features, parameters, applications, etc. of CMS05 product
This document is a technical datasheet for the Toshiba CMS05 Schottky barrier rectifier. It specifies that the device is suitable for switching mode power supply applications and portable equipment battery applications.
The datasheet provides detailed maximum ratings, including a repetitive peak reverse voltage of 30V and an average forward current of 1.0A at Tc=100°C. It also lists typical electrical characteristics such as forward voltage drop and reverse leakage current under specific test conditions.
| Repetitive Peak Reverse Voltage | 30 V |
|---|---|
| Peak One Cycle Surge Forward Current | 70 A |
| Junction Temperature Range | -40~150°C |
The device can handle a maximum repetitive peak reverse voltage of 30 V.
It supports an average forward current of 5.0 A when the junction temperature is 100°C.
The required soldering land size on a ceramic substrate is 2mm x 2mm.
