The ST330S series is a 330 amp phase control thyristor with center amplifying gate, hermetic metal case with ceramic insulator, international standard case TO-209AE (TO-118), threaded studs UNF 3/4-16UNF2A or ISO M24x1.5, compression bonded encapsulation for heavy duty operations such as severe thermal cycling. Typical applications include DC motor controls, controlled DC power supplies and AC controllers.

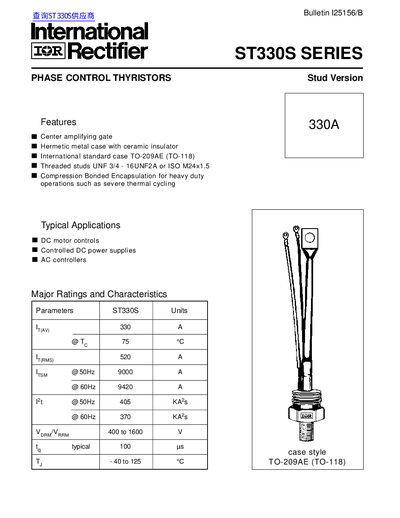

This document is a technical bulletin (Bulletin 25156/B) for the International Rectifier ST330S Series Phase Control Thyristors. It provides major ratings and characteristics including voltage ratings from 400V to 1600V, average on-state current of 330A, and peak non-repetitive surge currents up to 9420A.
| Average on-state current (Iav) | 330 A |
|---|---|
| Voltage range (VDRM/VRRM) | 400 to 1600 V |
| Operating temperature range | -40 to 125 C |
| Case style | TO-209AE (TO-118) |
The maximum operating temperature range is from -40 to 125 degrees Celsius.
The maximum average on-state current is 330 A under conditions of 180° conduction with a half sine wave at a case temperature of 75 °C.
The maximum operating temperature range is -40 to 125 °C, while the maximum storage temperature range is -40 to 150 °C.
The required mounting torque is 48.5 Nm (425 lbf-in) when the threads are not lubricated.
