IDT54/74FCT88915TT is a low-jitter PLL clock driver launched by IDT. The operating frequency range is 10MHz-133MHz. There are 5 non-inverting outputs, 1 inverted output, 1 2x output and 1 1/2x output at the output port. All output ports are TTL-compatible. The output voltage range is 3V-5V and the output current is 64-15mA.

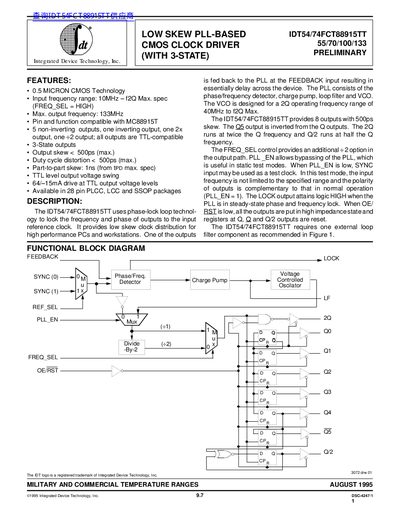

The IDT54/74FCT88915TT is a low skew, PLL-based CMOS clock driver designed for high-performance PCs and workstations. Utilizing 0.5-micron CMOS technology, the device locks the frequency and phase of its outputs to an input reference clock. It provides eight outputs with a maximum output-to-output skew of 500ps.
| Technology Process | 0.5 MICRON CMOS Technology |
|---|---|
| Max Output Frequency | 133MHz |
| Output Skew (max) | < 500ps |
| Operating Temperature Range (Commercial) | 0 to +70 C |
| Operating Temperature Range (Military) | -55 to +125 C |
The maximum output frequency is 133MHz.
The device provides 8 outputs with specific configurations including inverted and doubled frequencies.
The maximum output skew is less than 500ps.
