The FCT574 is an 8-bit register built using an advanced dual metal CMOS technology.

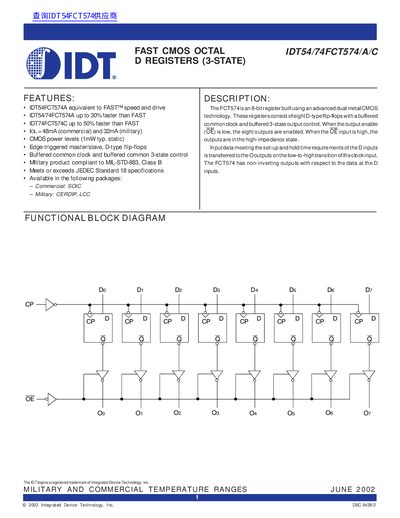

This document is a technical datasheet for the IDT54/74FCT574/A/C, which are Fast CMOS octal D-type registers with buffered common clock and buffered 3-state output control. The device consists of eight edge-triggered master/slave flip-flops that transfer input data to outputs on the low-to-high transition of the clock signal.
| Number of Flip-Flops | 8-bit |
|---|---|
| Operating Temperature (Commercial) | 0°C to +70°C |
| Operating Temperature (Military) | -55°C to +125°C |
Input data is transferred to the outputs on the low-to-high transition of the clock input.
The device is available in SOIC packages for commercial applications.
