The IDT74LVC374A is an industrial temperature range 3.3V CMOS octal edge-triggered D-type flip-flop. It is built using 0.5-micron CMOS technology and features ESD protection of over 2000V. The device supports hot insertion and has rail-to-rail output swing for increased noise margin. It is suitable for 5V and 3.3V mixed voltage systems.

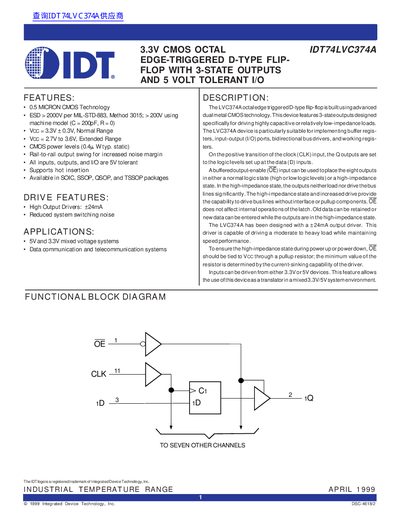

This document is a technical datasheet for the IDT74LVC374A, an octal edge-triggered D-type flip-flop built using advanced dual metal CMOS technology. The device features 3-state outputs designed to drive highly capacitive or low-impedance loads and includes +24mA output drivers.
| Technology | 0.5 MICRON CMOS Technology |
|---|---|
| ESD Protection (Machine Model) | > 200V |
| Operating Voltage Range (Normal) | 3.3V + 0.3V |
| Operating Voltage Range (Extended) | 2.7V to 3.6V |
| Output Driver Current | +24mA |
| Input/Output Tolerance | 5V tolerant |
| Temperature Range | -40°C to +85°C |
The device is suitable for mixed voltage systems, data communication, and telecommunication systems.
The IDT74LVC374A is available in SOIC, SSOP, QSOP, and TSSOP packages.
