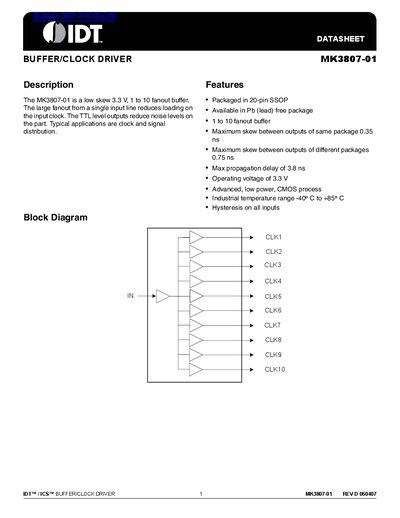

The MK3807-01 is a low skew 3.3V, 1 to 10 fanout buffer. The large fanout from a single input line reduces loading on the input clock. The TTL level outputs reduce noise levels on the part. Typical applications are clock and signal distribution.
The IDT MK3807-01 is a low skew buffer and clock driver designed for signal distribution applications. It operates at 3.3 V and features TTL level outputs to reduce noise levels, supporting a maximum fanout of 10 from a single input line.
The device is packaged in a 20-pin SSOP (or SOIC/TSSOP) lead-free package suitable for industrial temperature ranges (-40°C to +85°C). Key specifications include a maximum skew between outputs of the same package of 0.35 ns and a propagation delay of up to 3.8 ns.
| Operating Voltage | 3.135 V to 3.465 V (Typical 3.3 V) |
|---|---|
| Maximum Skew (Same Package) | 0.35 ns |
| Maximum Skew (Different Packages) | 0.75 ns |
| Max Propagation Delay | 3.8 ns |
| Fanout Capability | 1 to 10 |
| Package Type | 20-pin SSOP (also SOIC/TSSOP) |
The device operates at a nominal power supply voltage of 3.3 V, with an acceptable range from 3.135 V to 3.465 V.
The maximum skew between outputs within the same package is 0.35 ns.
Yes, parts ordered with an 'LF' suffix to the part number are the Pb-Free configuration and are RoHS compliant.
