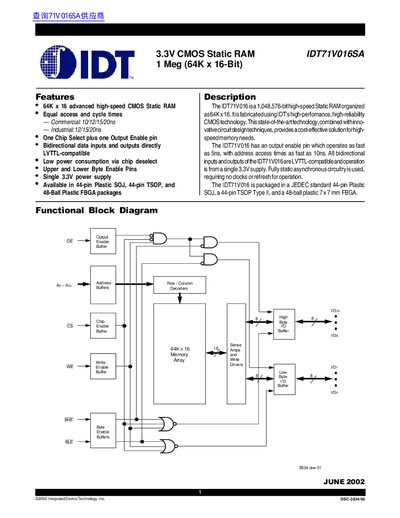

This document introduces the IDT71V016 64K x 16 high performance static random access memory (SRAM). This product is manufactured using IDT's high-performance, high-reliability CMOS technology. This technology combined with innovative circuit design techniques provides a cost-effective solution for high-speed memory needs. The IDT71V016 has a 5ns output enable pin with address access times as fast as 10ns. All bidirectional inputs and outputs of the IDT71V016 are LVTTL-compatible and operation is from a single 3.3V supply. This product uses fully static asynchronous circuitry, requiring no clocks or refresh for operation. The product is packaged in a JEDEC standard 44-pin plastic SOJ, a 44-pin TSOP Type II, and a 48-ball plastic 7 x 7 mm FBGA package.
The IDT71V016SA is a 3.3V CMOS Static RAM organized as 64K x 16 bits, fabricated using IDT's high-performance technology. It features equal access and cycle times with speeds ranging from 10ns to 20ns for commercial applications and 12ns to 20ns for industrial applications.
| Organization | 64K x 16-Bit |
|---|---|
| Supply Voltage | 3.3V |
| Commercial Speed Grades | 10/12/15/20ns |
| Industrial Speed Grades | 12/15/20ns |
| Commercial Temperature Range | 0°C to +70°C |
| Industrial Temperature Range | -40°C to +85°C |
| Available Packages | 44-pin Plastic SOJ, 44-pin TSOP, and 48-Ball Plastic FBGA |
| Max Power Dissipation | 1.25 W |
The device is organized as 64K x 16 bits.
Yes, it uses fully static asynchronous circuitry requiring no clocks or refresh for operation.
All bidirectional inputs and outputs are LVTTL-compatible.
