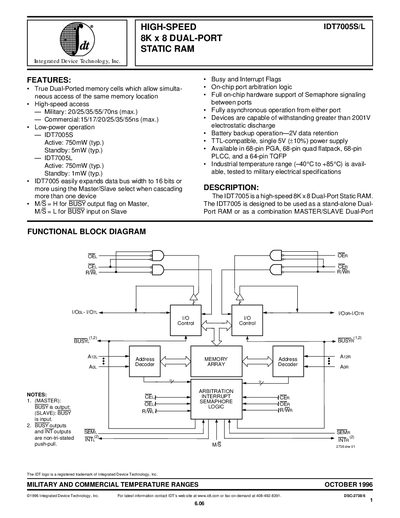

The IDT7005S/L high-speed 8K x 8 Dual-Port Static RAM has true Dual-Ported memory cells which allow simultaneous access of the same memory location, with high-speed access and low-power operation. It can be expanded using the Master/Slave select when cascading more than one device.
The IDT7005 is a high-speed 8K x 8 Dual-Port Static RAM designed by Integrated Device Technology, Inc. It allows simultaneous access to the same memory location from two independent ports with separate control and address pins. The device supports both commercial and military temperature ranges and offers low-power operation options.
| Memory Capacity | 8K x 8 |
|---|---|
| Power Supply Voltage | 5.0V (+/-10%) |
| Operating Temperature (Commercial) | 0°C to +70°C |
| Operating Temperature (Military) | -55°C to +125°C |
| Active Power Consumption (S Series) | 750mW (typ.) |
The device is available in 68-pin PGA, 68-pin quad flatpack, 68-pin PLCC, and a 64-pin TQFP.
Yes, it supports battery backup operation for data retention at 2V.
