This document describes the features and characteristics of the IDT7008S/L high-speed 64K x 8 dual-port static RAM, including expandable data bus width, support for semaphore signaling, fully asynchronous operation, and low-power operation.

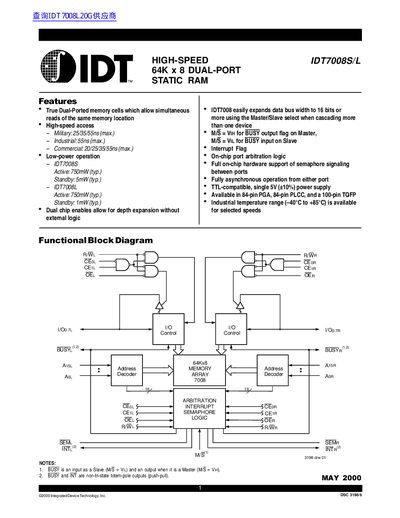

The document describes the IDT7008, a high-speed 64K x 8 Dual-Port Static RAM designed for use as a stand-alone memory or in Master/Slave configurations for 16-bit systems. It features two independent ports with separate control and address pins that permit asynchronous access.
| Memory Capacity | 64K x 8 |
|---|---|
| Power Supply Voltage | 5V (+10%) |
| Active Power Consumption (Typical) | 750mW |
| Standby Power Consumption (IDT7008L Typ.) | 1mW |
| Operating Temperature (Commercial) | 0°C to +70°C |
The maximum access time for Commercial grade devices is 56ns.
The device is available in 84-pin PGA, 84-pin PLCC, and a 100-pin TQFP.
