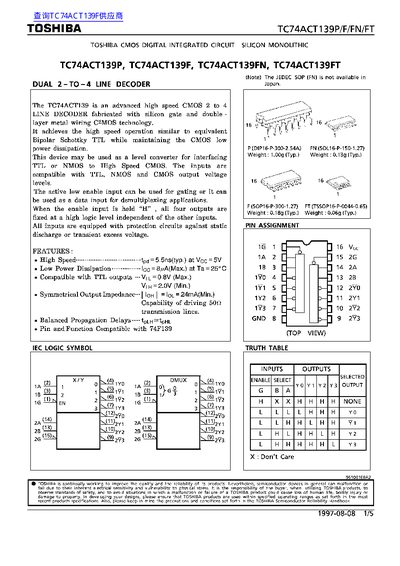

This document describes the Toshiba TC74ACT139P/F/FN/FT, an advanced high-speed CMOS 2 to 4 Line Decoder fabricated with silicon gate and double-layer metal wiring C2MOS technology. The device achieves high speed operation similar to equivalent Bipolar Schottky TTL while maintaining low power dissipation.
| Technology | CMOS |
|---|---|
| Function | 2 to 4 Line Decoder |
| Supply Voltage Range | -0.5~7.0 V |
| Operating Temperature | -40~85 °C |
| Power Dissipation (DIP) | 500 mW |
The absolute maximum rating for the supply voltage range is 7.0 V.
The typical weight for the DIP16 package is 1.009 grams.
