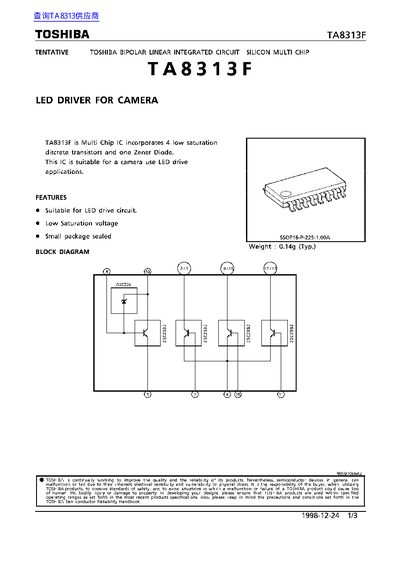

The document describes the Toshiba TA8313F, a bipolar linear integrated circuit silicon multi-chip specifically designed as an LED driver for camera use. The device incorporates four low saturation discrete transistors and one Zener diode within a small SSOP 16-P-225-1.00A package.
| Supply Voltage (Vcc) | 30 V |
|---|---|
| Breakdown Voltage (VcEO) | 10 V |
| Output Current (Iout) | 2 A |
| Power Dissipation (Pb) | 330 mW |
| Operating Temperature (Topr) | -20~60 °C |
| Package Type | SSOP 16-P-225-1.00A |
This IC is suitable for a camera use LED drive applications.
The device incorporates 4 low saturation discrete transistors and one Zener Diode.
