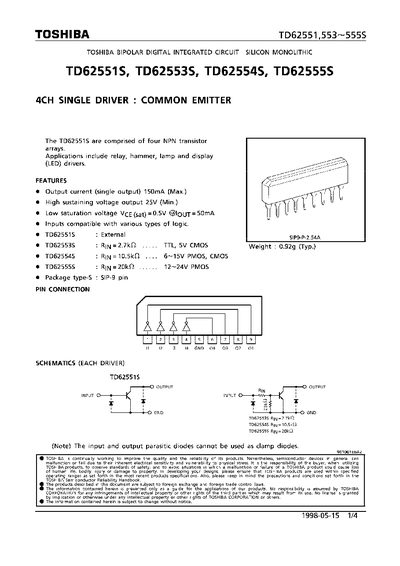

This document provides technical specifications for the Toshiba TD62551, TD62553S, TD62554S, and TD62555S series of bipolar digital integrated circuits. These devices are designed as four-channel single drivers with a common emitter output configuration.
| Output current (single output) | 150mA (Max.) |
|---|---|
| High sustaining voltage output | 25V (Min.) |
| Collector-Emitter Saturation Voltage Vce(sat) | 0.5V @Iout =50mA |
| Package type for TD62551S | External SIP9-P-2.54A |
| Input Resistance for TD62553S | Rin=2.7kΩ |
| Input Resistance for TD62554S | Rin=10.5kΩ |
| Input Resistance for TD62555S | Rin=20kΩ |
Applications include relay, hammer, lamp and display (LED) drivers.
The recommended operating temperature range is -40°C to 85°C.
