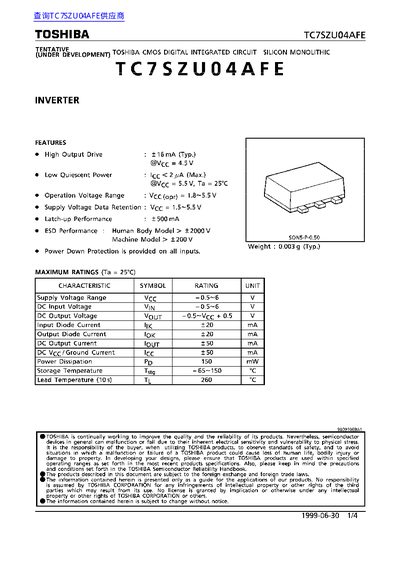

This document is the datasheet of TC7SZU04AFE, which introduces the features and characteristics of this product.
This document provides technical data for the Toshiba TC7SZU04AFE, a silicon monolithic CMOS digital integrated circuit. It functions as an inverter with high output drive capabilities of 16mA typical at Vcc = 4.5V.
The datasheet lists maximum ratings, DC and AC electrical characteristics across operating temperatures from -40°C to +85°C, and includes a pin assignment diagram for the SON5-P-0.50 package.
| Output Drive Current (Typical) | 16mA |
|---|---|
| Operation Voltage Range | 1.8~5.5V |
| Latch-up Performance | 500mA |
| ESD Performance (Human Body Model) | > +2000 V |
| Supply Voltage Range (Max Ratings) | -0.5~6 Vv |
The device can be stored between -65°C and +150°C.
The typical high output drive current is 16 mA.
The maximum power dissipation is 150 mW.
