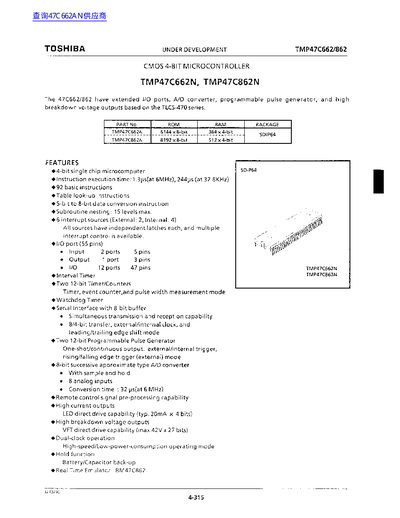

This document describes the TMP47C662/862 series of CMOS 4-bit single chip microcomputers. These devices are based on the TLCS-470 series architecture and include extended I/O parts, an A/D converter, a programmable pulse generator, and high breakdown voltage outputs.
The datasheet details the hardware configuration, pin assignments, and operational descriptions of the peripheral functions. Key features include 15 I/O ports (55 pins total), two 12-bit timers/counters, a watchdog timer, serial interface with simultaneous transmission/reception, and an 8-bit successive approximate A/D converter.
| Architecture | 4-bit single chip microcomputer |
|---|---|
| Instruction execution time (at 6MHz) | 1.3us |
| Instruction execution time (at 32.8KHz) | 244us |
| Basic instructions count | 92 |
| Interrupt sources | 6 (External: 2, Internal: 4) |
| I/O ports count | 15 (55 pins) |
| Timer/Counters | Two 12-bit Timer/Counters |
| A/D Converter type | 8-bit successive approximate type |
| Analog inputs count | 8 |
| A/D Conversion time (at 6 MHz) | 32 us |
Yes, it includes a hold function with battery/capacitor back-up.
The instruction execution time is 1.3ps when operating at 6MHz.
This microcontroller supports a maximum of 15 levels of subroutine nesting.
A negative voltage of -35V max can be applied to the VKK pin.
