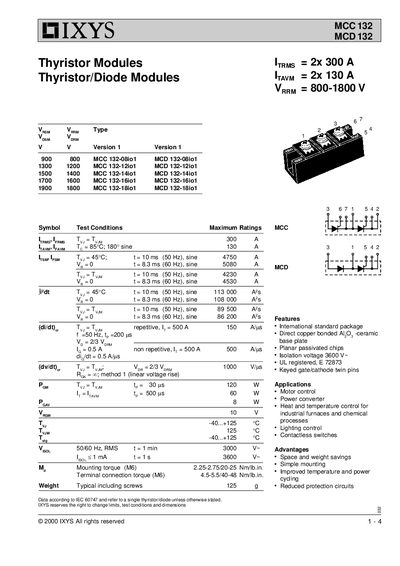

IXYS MCC132/MCD132 Thyristor Modules Datasheet

This datasheet provides the maximum ratings, test conditions, VRSM, VRRM, VDSM, VDRM, version etc. of MCC 132-08io1 and MCD 132-08io1.

Brand: IXYS
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 5
File format: PDF
File size: 180 KB
Published: 05 June, 2012
Updated: 30 September, 2023
MD5 checksum: 1625BFF18441809288DAC31EBD4A0757
PDF: IXYS MCC132/MCD132 Thyristor Modules Datasheet PDF

About this manual

This document provides technical specifications for the IXYS MCC132 and MCD132 Thyristor/Diode Modules. It lists maximum ratings such as RMS current (ITRMS) of 300 A per device and repetitive peak off-state voltage up to 1800 V, along with thermal impedance data.

What's inside

Maximum Ratings
Characteristic Values
Features
Applications
Dimensions
Mounting Torque

Specifications

RMS Current (ITRMS)	2 x 300 A
Average On-State Current (ITAVM)	2 x 130 A
Repetitive Peak Off-State Voltage (VRRM)	800-1800 V

Frequently asked questions

What is the isolation voltage?

The modules have an isolation voltage of 3600 V~ (RMS, t = 1 min).

What is the maximum allowable acceleration for these modules?

The maximum allowable acceleration is 50 m/s2.

How long are the wires on the optional keyed gate/cathode twin plugs?

The wire length is 350 mm.
