This datasheet provides information about the IXYS DGSK 36-03CS diode, including the package, technical parameters, and applications.

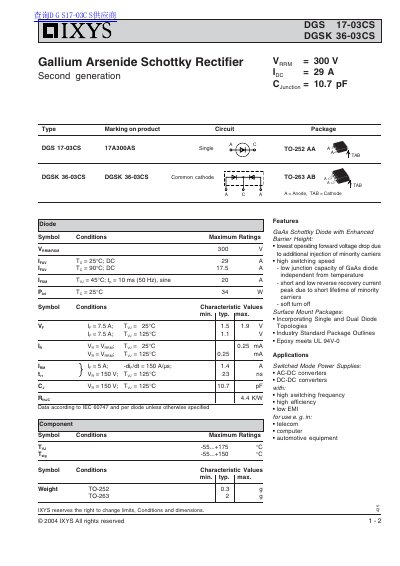

This document provides technical data for the IXYS 435DGS 17-03CS and DGSK 36-03CS Gallium Arsenide (GaAs) Schottky Rectifier diodes. Key features include an enhanced barrier height, low junction capacity independent of temperature, and soft turn-off characteristics suitable for high-frequency applications.
| Reverse Voltage (VRRM) | 300 V |
|---|---|
| Average Forward Current (IFAV) at 25°C | 29 A |
| Forward Voltage Drop (VF) | 1.9 V typ. |
| Reverse Recovery Time (trr) | 23 ns |
| Operating Junction Temperature Range | -55...+175 °C |
| Package Type | TO-252, TO-263 |
They are designed for use in Switched Mode Power Supplies, including AC-DC converters and DC-DC converters with high switching frequency.
The maximum operating junction temperature (TVJ) is +175 °C.
