This document describes the features and characteristics of a specific model of diode/thyristor manufactured by IXYS, including maximum rated current, maximum rated voltage, maximum power, etc.

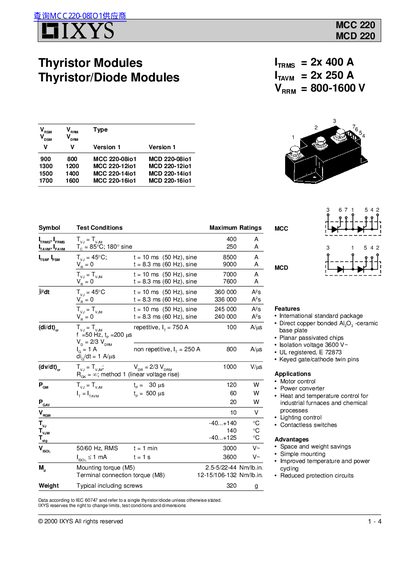

This document provides a comprehensive technical overview of the IXYS MCC and MCD 220 series Thyristor/Diode Modules. It lists key features such as international standard packaging, direct copper bonded ceramic base plates, and isolation voltage ratings up to 3600 V~. The modules are designed for applications including motor control, power conversion, lighting control, and contactless switches.
| Isolation Voltage (VISOL) | 3000 V~ (t = 1 min) / 3600 V~ (t = 1 s) |
|---|---|
| Mounting Torque (M5) | 2.5-5 Nm |
| Operating Temperature Range (TVJ) | -40...+140 /G176C |
| Storage Temperature Range (Tstg) | -40...+125 /G176C |
| Thermal Resistance Junction-to-Case (RthJC) | 0.139 K/W (DC current) |
The modules are suitable for motor control, power conversion, heat and temperature control for industrial furnaces, lighting control, and contactless switches.
The isolation voltage is rated at 3000 V~ RMS for 1 minute and 3600 V~ for 1 second.
The recommended mounting torque for M5 terminals is between 2.5 and 5 Nm.
