This is an English manual for MCC 225-12io1, MCC 225-14io1, MCC 225-16io1, MCC 225-18io1 products. It mainly introduces the products' maximum ratings, test conditions, features and applications.

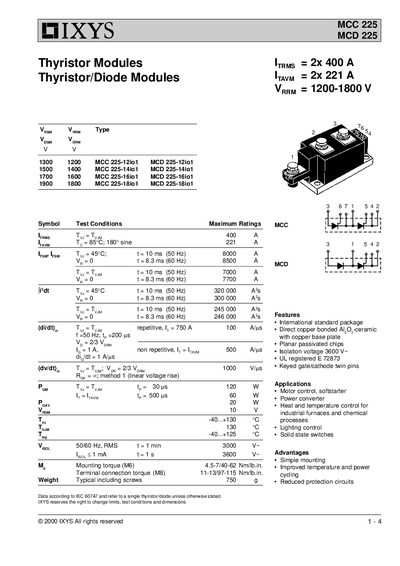

This document provides a comprehensive technical overview of the IXYS MCC 225 and MCD 225 Thyristor Modules. It specifies maximum electrical ratings such as surge current (ITSM), average forward current (ITAVM), and repetitive peak off-state voltage (VRRM). The modules feature an international standard package with direct copper bonding to an Al2O3-ceramic base plate, designed for high isolation voltages up to 3600 V~.
| Repetitive Peak Off-State Voltage (VRRM) | 1200-1800 V |
|---|---|
| Isolation Voltage (VISOL) | 3600 V~ |
| Mounting Torque (M6) | 4.5-7 Nm |
| Thermal Resistance Junction-to-Case (RthJC) | 0.157 K/W |
The typical weight for a module including screws is 750 g.
The maximum junction temperature (TJ) is 130 °C.
You must apply a mounting torque between 4.5 and 7 Nm (or 40-62 lb.in.).
The maximum allowable acceleration is 50 m/s².
