This is the MCC170-12io1 datasheet, which includes product's maximum ratings, test conditions, features and characteristics, application fields etc.

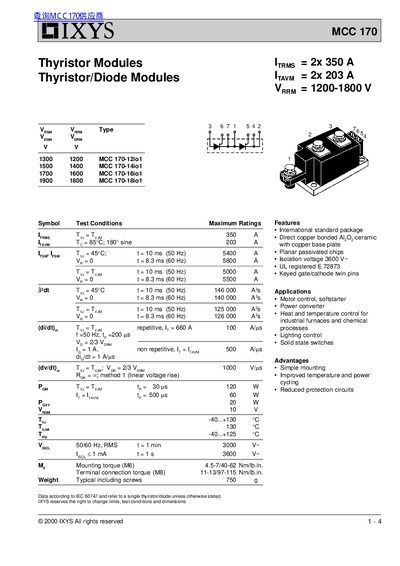

This document is a technical datasheet for the IXYS MCC 170 series of thyristor/diode modules. It provides comprehensive data on maximum ratings such as surge current (ITSM) up to 5800 A and isolation voltage of 3600 V~. The modules feature an international standard package with direct copper bonded Al2O3-ceramic construction.
| Isolation Voltage (VISOL) | 3000 V~ |
|---|---|
| Thermal Resistance Junction-to-Case (RthJC) | 0.164 K/W |
| Mounting Torque (M6) | 4.5-7 Nm |
| Operating Temperature Range (TVJ) | -40...+130 °C |
The creeping distance on the surface is 12.7 mm.
The junction temperature must not exceed 130 °C.
Apply a mounting torque between 4.5 and 7 Nm (or 40-62 lb.in.).
The maximum allowable acceleration is 50 m/s².
