This file is about MCC 19-xxio1 B / MCC 19-xxio8 B series product parameters, including ITRMS, ITAVM, VRRM, VRSM, VDSM, VDRM, Test Conditions, Maximum Ratings, ITSM, ITSM, �i2dt, (di/dt)cr, (dv/dt)cr, PGM, PGAV, VRGM, TVJ, TVJM, Tstg, VISOL, IISOL, Md, Mounting torque, Terminal connection torque, Weight etc.

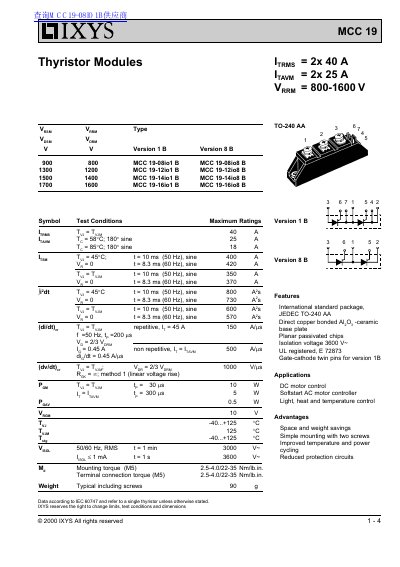

This document provides a technical overview of the IXYS MCC 19 series thyristor modules. It details maximum ratings such as forward current (ITRM) up to 40 A per module and repetitive peak off-state voltage ranging from 800 V to 1700 V depending on the specific model variant.
| Forward Current (ITRMS) | 2 x 40 A |
|---|---|
| Average Forward Current (ITAVM) | 2 x 25 A |
| Repetitive Peak Off-State Voltage (VRRM) | 800-1600 V |
| Gate Trigger Voltage (VGDT) | 0.2 V |
The modules are suitable for DC motor control, softstart AC motor controllers, and light, heat, and temperature control.
The mounting torque for M5 screws should be between 2.5-4.0 Nm (22-35 lb.in).
