This product is a dual bidirectional thyristor with a rated current of 2x300A and a rated voltage of 800-1800V. Product features include international standard packaging, direct copper bonding Al2O3 ceramic base plate, planar passivated chips, 3600V isolation voltage, UL registered, E 72873, keyed gate/cathode twin pins, etc. Product applications include motor control, power converters, heat and temperature control for industrial furnaces and chemical processes, lighting control and contactless switches. Product advantages include space and weight savings, simple installation, improved temperature and power cycling, and reduced protection circuits.

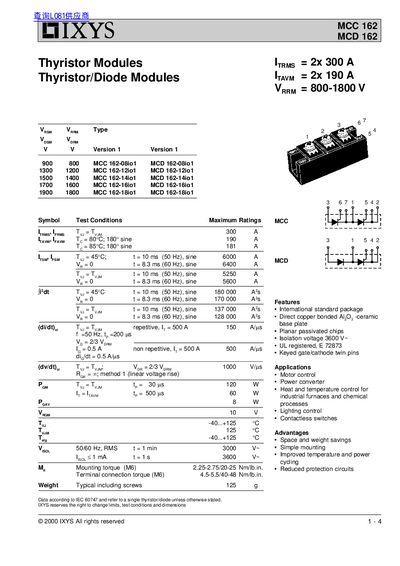

This document provides a technical overview of the IXYS MCC 162 and MCD 162 series of Thyristor/Diode Modules. It specifies maximum ratings such as RMS current (300 A) and surge current (up to 6400 A), along with electrical characteristic values like forward voltage drop and gate trigger parameters.
| RMS Current (ITRMS) | 300 A |
|---|---|
| Average Current (ITAVM) | 190 A |
| Repetitive Peak Reverse Voltage (VRRM) | 800-1800 V |
| Operating Temperature Range (TVJ) | -40...+125 /G176C |
They are used for motor control, power conversion, heating and temperature control in industrial furnaces, lighting control, and contactless switches.
The modules feature an isolation voltage of 3600 V~.
