MCC 122 is a dual thyristor module with a rated current of 300A, a rated voltage of 800-1800V, a rated off-state current of 128A, and a rated off-state voltage of 800V. It features an international standard package and direct copper foil connection.

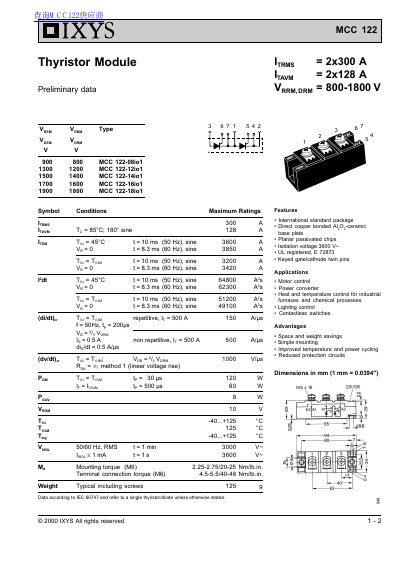

This document is a preliminary datasheet for the IXYS MCC122 thyristor module. It provides maximum ratings such as RMS current (300 A) and voltage ratings ranging from 800 V to 1900 V depending on the specific model variant.
The module features an international standard package with a direct copper bonded Al2O3-ceramic base plate and planar passivated chips. Key applications include motor control, power converters, lighting control, and industrial furnace temperature regulation.
| RMS Current (ITRMS) | 300 A |
|---|---|
| Average Current (ITAVM) | 128 A |
| Repetitive Peak Off-State Voltage (VRRM) | 800-1900 V |
| Operating Temperature Range (TVJ) | -40...+125 °C |
| Mounting Torque (M6) | 2.25-2.75 Nm |
| Weight (Typical) | 125 g |
Yes, the module is UL registered with file number E 72873.
The maximum continuous RMS current (ITRMS) is rated at 300 A.
The module operates from -40°C to +125°C, with a maximum junction temperature of 125°C.
The specified mounting torque for M6 screws is between 2.25 and 2.75 Nm.
