The 308 VWI 20-06P1 is a Sixpack IGBT module with NPT IGBTs and FRED diodes, and it is suitable for applications such as AC drives and power supplies with power factor correction.

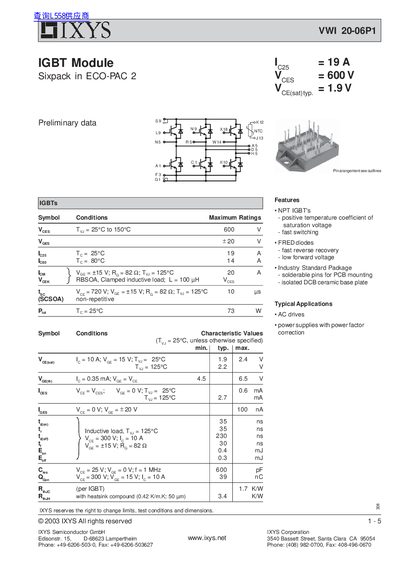

This document provides preliminary technical data for the IXYS VWI 20-06P1, a Sixpack in ECO-PAC 2 package containing six IGBTs and integrated FRED diodes. The device is designed with an isolated DCB ceramic base plate and solderable pins for PCB mounting.
| Package Type | Sixpack in ECO-PAC 2 |
|---|---|
| Typical Saturation Voltage | 1.9 V |
| Base-Emitter Voltage (Max) | +20 V |
Both the creepage distance on the surface and the strike distance in air measure 11.2 mm.
The specified mounting torque range is between 1.5 and 2.0 Nm.
