This data sheet provides the maximum ratings of MCC 19-08io1 B and MCC 19-16io8 B, including ITRMS, ITAVM, VRRM, VRSM, VDSM, VDRM, ITRMS, ITAVM, ITSM, TVJ, TVJM, i2dt, (di/dt)cr, (dv/dt)cr, PGM, TVJ, TVJM, Tstg, VISOL, IISOL, Md, Mounting torque, Terminal connection torque and Weight.

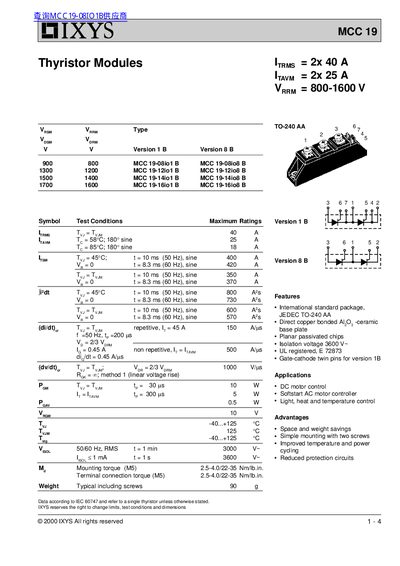

This document provides technical specifications for the IXYS MCC 19 series of thyristor modules. It details maximum ratings such as current handling up to 40A and voltage ranges from 800V to 1600V. The modules feature an international standard JEDEC TO-240 AA package with a direct copper bonded Al2O3 ceramic base plate.
| Package Type | JEDEC TO-240 AA |
|---|---|
| Isolation Voltage | 3600 V~ |
| Mounting Torque (M5) | 2.2-35 Nm/lb.in. |
| Weight | 90 g |
The mounting torque must be between 2.5 and 4.0 Nm or 22-35 lb.in.
The stated isolation voltage is 3600 V~.
These modules are intended for DC motor control, softstart AC motor controllers, and light, heat and temperature control.
