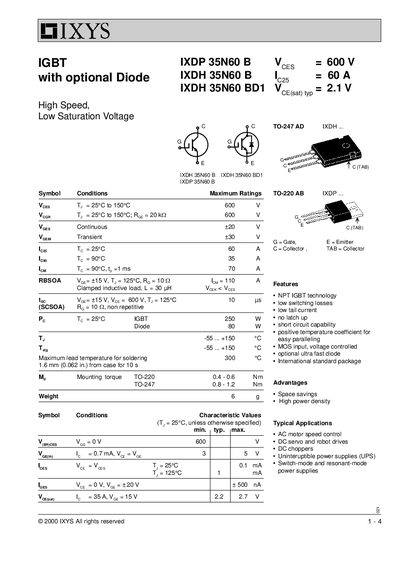

This datasheet provides the technical specifications of IXDP 35N60 B, IXDH 35N60 B and IXDH 35N60 BD1. These IGBTs feature NPT technology, low switching losses, low tail current, no latch up, short circuit capability, positive temperature coefficient for easy paralleling, MOS input, voltage controlled, optional ultra fast diode and international standard package.
This document is a technical datasheet for the IXYS IXDP 35N60 B and related models (IXDH 35N60 B, IXDH 35N60 BD1). It details the electrical characteristics, maximum ratings, and typical applications of these NPT IGBTs.
| Collector-Emitter Voltage (Vces) | 600 V |
|---|---|
| Continuous Collector Current (Ic) | 35 A at 90°C |
| Operating Temperature Range | -55 ... +150 °C |
| Package Types | TO-220, TO-247 |
Typical applications include AC motor speed control, DC servo and robot drives, DC choppers, and uninterruptible power supplies (UPS).
Yes, the IXDP 35N60 B is listed with an optional Diode.
