This document introduces the features and characteristics of the SuperFlux LED product family. The SuperFlux LED product family uses red, red-orange and amber LED materials to meet the color requirements of many lighting applications, such as vehicle signal lamps, specialty lighting and electronic signs. SuperFlux LED products have high luminance, uniform color, low power consumption, low thermal resistance, low profile and meet SAE/ECE/JIS automotive color requirements.

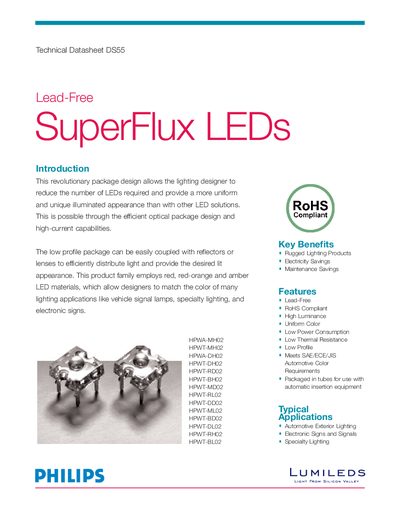

This document is a technical datasheet for the Philips Lumileds DS55 series of Lead-Free SuperFlux LEDs. The product family utilizes efficient optical package designs to provide high luminance and uniform color output while maintaining low power consumption and thermal resistance. Available in red, red-orange, and amber materials, these devices are designed for applications such as automotive exterior lighting, electronic signs, and specialty lighting.
| DC Forward Current | 70 mA |
|---|---|
| Power Dissipation | 187 to 221 mW |
| Reverse Voltage | 10 V |
| Operating Temperature Range | -40 to +100 °C |
| Storage Temperature Range | -56 to +100 °C |
| Thermal Resistance | 200 °C/W |
The product family employs red, red-orange, and amber LED materials.
Yes, the datasheet states they are RoHS Compliant.
The recommended peak profile temperature for soldering is 250 +/- 5°C.
