This document introduces the features of P83C557E4/P80C557E4/P89C557E4 single-chip 8-bit microcontroller

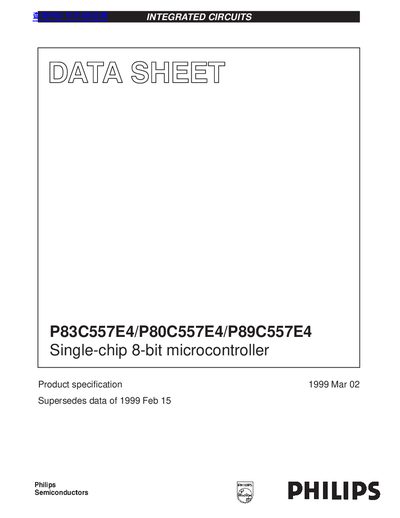

This document is a product specification for the Philips P8xC557E4 family of single-chip 8-bit microcontrollers. The devices are derivatives of the 80C51 family and include three versions: the ROM-coded P83C557E4, the ROMless P80C557E4, and the Flash-EEPROM based P89C557E4.
| CPU Architecture | 80C51 central processing unit |
|---|---|
| ROM Size (P83/P89) | 32 K X 8 ROM respectively FEEPROM (Flash-EEPROM), expandable externally to 64 Kbytes |
| RAM Size | 1024 x 8 RAM, expandable externally to 64 Kbytes |
| Supply Voltage Range | 4.5 to 5.5 V |
| Operating Temperature (Extended) | -40 to +85°C |
| Frequency Range | 3.5 MHz to 16 MHz |
The three versions are the P83C557E4 with 32 Kbytes mask programmable ROM, the P80C557E4 which is a ROMless version, and the P89C557E4 with 32 Kbytes FEEPROM.
Yes, it includes a 10-bit ADC with eight multiplexed analog inputs and programmable autoscan.
