PDZ-B series is low-power general purpose voltage regulator diodes in a small plastic SMD SOD323 package.

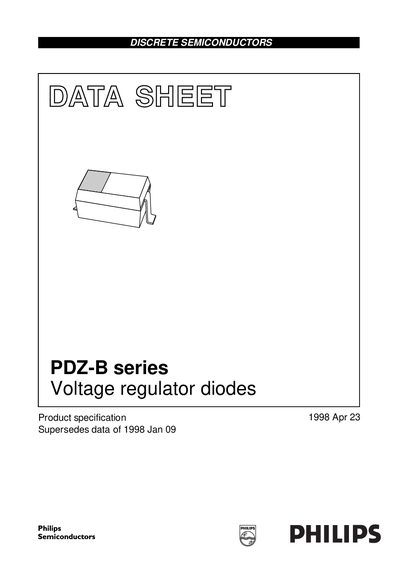

This document is a product specification datasheet for the Philips PDZ-B series of discrete semiconductor voltage regulator diodes. The devices are designed as low-power, general-purpose components suitable for surface-mounted design applications.
The diodes are housed in small plastic SOD323 packages and offer a wide variety of nominal working voltages ranging from 2.4 V to 36 V (E24 range). Key features include a total power dissipation maximum of 400 mW and reverse current specifications varying by model type.
| Total power dissipation (max) | 400 mW |
|---|---|
| Working voltage range (nominal) | 2.4 to 36 V |
| Storage temperature range | -65 to +150 °C |
The maximum total power dissipation is 400 mW when the ambient temperature is 25 °C.
The test setup uses a printed-circuit board measuring 11 x 25 x 1.6 mm.
The device can handle a continuous forward current of up to 200 mA.
