The SAB9075H is a Picture-in-Picture (PIP) controller for NTSC. It can display one or two live pictures simultaneously, with a wide range of multi-PIP modes available. It features six 6-bit Analog-to-Digital Converters (ADC) with clamping circuit, enhanced vertical resolution at most modes for live pictures, and two Phase-Locked-Loops (PLL) with Voltage Controlled Oscillator (VCO) to generate the line-locked clocks. It also includes three 7-bit Digital-to-Analog Converters (DAC) and supports a 4:1:1 data format. The controller is I2C-bus programmable, allowing for different single, double, and multi-PIP modes to be set. It can handle several aspect ratios and supports automatic and manual data reduction factors. Users can select the vertical filtering type, freeze live pictures, and adjust the display position and acquisition area. The controller supports single-PIP display position in the four corners of the screen, and multi-PIP display position on the left or right. Fine-tuned display position and acquisition area can be adjusted. Users can also select various border and background colors, as well as adjust the border and background brightness. The controller supports multiple types of decoder inputs.

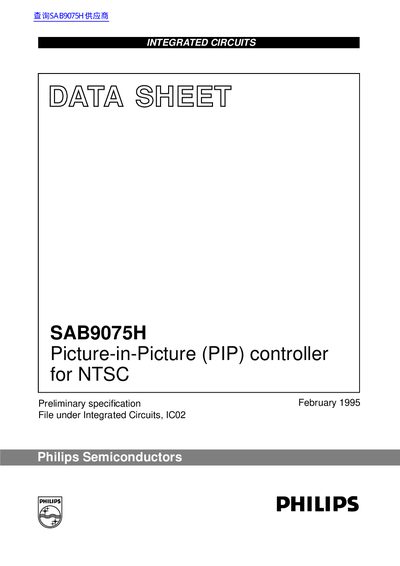

The Philips SAB9075H is a preliminary specification document for an integrated circuit designed as a Picture-in-Picture (PIP) controller for the NTSC environment. It is intended to be used in combination with the TDA8315 Integrated NTSC decoder and sync processor.
This device allows one or two live video channels to be displayed simultaneously within a main live video signal. Key features include six 6-bit Analog-to-Digital Converters (ADCs), three 7-bit Digital-to-Analog Converters (DACs), and support for various PIP modes, aspect ratios, and border colors. The chip includes internal Phase-Locked-Loops (PLLs) to generate line-locked clocks.
| Supply Voltage (Vop) | 4.5 to 5.5 V |
|---|---|
| Total Supply Current (Iot) | 220 mA max |
| System Frequency (fsys) | up to 30 MHz |
| Loop Bandwidth Frequency (floop) | 4 kHz min |
| Time Jitter | 4 ns max |
The device acts as a picture-in-picture controller for NTSC environments that inserts one or two live video channels with reduced sizes into a main live video signal.
The positive supply pins must operate between 4.5 V and 5.5 V.
The internal system frequencies can reach a typical value of 30 MHz.
