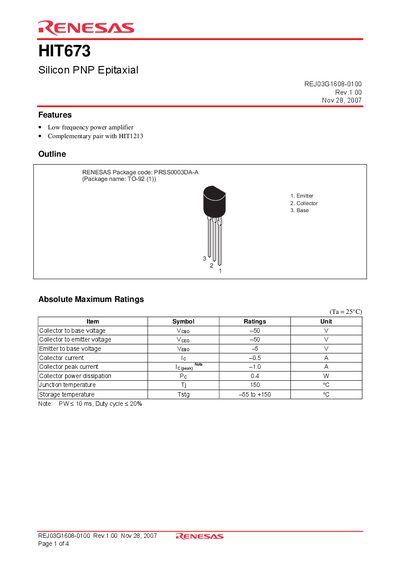

Renesas HIT673 Silicon PNP Epitaxial Transistor Datasheet

HIT673 is a silicon PNP transistor from RENESAS with low frequency power amplifier features

Brand: Renesas
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 5
File format: PDF
File size: 113 KB
Published: 05 June, 2012
Updated: 30 September, 2023
MD5 checksum: C3F510FDA9B70E06F8A532D27730676B
PDF: Renesas HIT673 Silicon PNP Epitaxial Transistor Datasheet PDF

About this manual

The document describes the Renesas HIT673, a Silicon PNP Epitaxial Transistor designed as a low frequency power amplifier. It is intended to be used in complementary pairs with the HIT1213 model. The device is packaged in a TO-92 (1) format and is specified for consumer use rather than automotive applications.

What's inside

Features
Absolute Maximum Ratings
Electrical Characteristics
Main Characteristics
Package Dimensions
Ordering Information

Specifications

Collector to base voltage	-50 V
Collector current	-0.5 A
Collector power dissipation	0.4 W
Junction temperature	150 °C
DC current transfer ratio (hFE)	60 to 320

Frequently asked questions

Is the HIT673 designed for automotive use?

No, this product is designed for consumer use and not for automotive applications.

What package code corresponds to the HIT673?

The RENESAS Package code for this device is PRSSO003DA-A.
