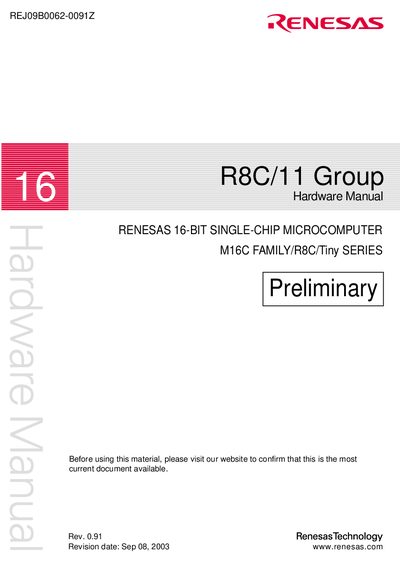

This document introduces the hardware manual of RENESAS 16-BIT SINGLE-CHIP MICROCOMPUTER M16C Family/R8C/Tiny SERIES R8C/11 Group 16 Rev. 0.91. It covers the safety considerations, product selection, and usage precautions.
This document serves as a hardware reference for the Renesas R8C/11 Group family of 16-bit single-chip microcomputers. It provides detailed information on features including applications, performance outlines, block diagrams, and pin assignments.
The manual covers the Central Processing Unit (CPU) architecture in detail, describing data registers, address registers, interrupt tables, flags, and stack pointers. Additionally, it includes sections on Special Function Registers (SFR), reset functions (hardware, software, and watchdog timer), and references to related documentation such as data sheets and software manuals.
The revision date for this manual is September 8, 2003.
Users must consider safety measures such as placing substitutive circuits or using non-flammable materials to prevent personal injury or property damage.
