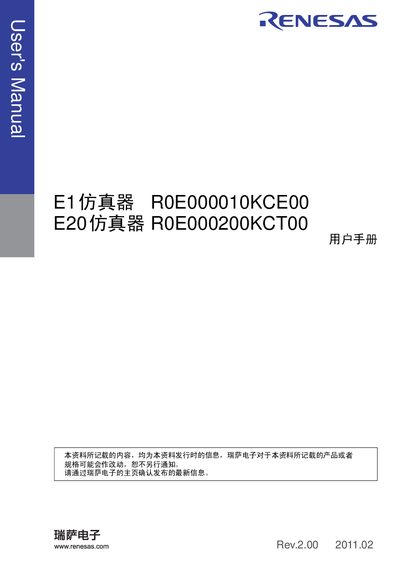

User manual for Renesas E1/E20 emulators covering setup, specifications, safety and warranty information.
The Renesas E1/E20 emulators are development tools for Renesas micro‑controllers. This manual provides a product overview, packaging contents, system configuration and detailed hardware specifications.
It also explains how to install the software, connect the emulator to a host PC and a target system, perform troubleshooting, and follow maintenance and warranty procedures. This manual is written in Chinese.
| USB interface | USB 2.0 (high‑speed / full‑speed) |
|---|---|
| Target I/F connector | 14‑pin connector (7614‑6002) |
| Additional I/F connector | 38‑pin connector (2‑5767004‑2) |
| Emulator power source | From USB bus power |
| Target MCU power source | From user system |
| Weight | 72 g (E1) / 103 g (E20) |
| Operating temperature | 5 °C – 35 °C (no condensation) |
| Storage temperature | -10 °C – 60 °C (no condensation) |
| European compliance | EN55022 Class A, EN55024 |
| US compliance | FCC Part 15 Class A |
It uses a USB 2.0 interface that supports both high‑speed and full‑speed operation.
The device can be used from 5 °C up to 35 °C, provided there is no condensation.
Yes, it meets European EN55022/EN55024 Class A requirements and US FCC Part 15 Class A requirements.
