The HD74LV2G32A is a dual two-input OR gate from the Renesas uni logic series that is suitable for battery-powered products (e.g., notebook computers) and its low voltage and high-speed operation extends the battery life.

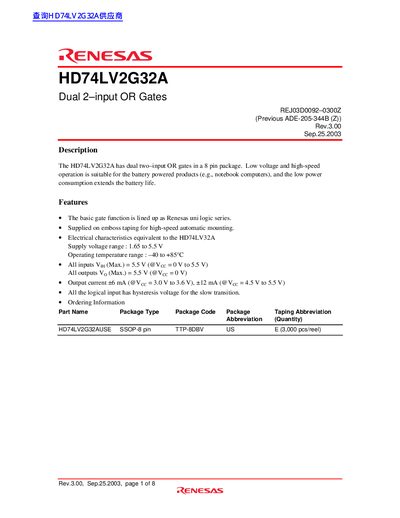

The document is a technical datasheet for the Renesas HD74LV2G32A, which contains dual two-input OR gates in an 8-pin package. It is designed for low-voltage and high-speed operations suitable for battery-powered products like notebook computers.
The datasheet provides comprehensive electrical characteristics, including supply voltage ranges from 1.65V to 5.5V and operating temperatures from -40°C to +85°C. It details absolute maximum ratings, recommended operating conditions, switching characteristics, pin arrangements, and package dimensions for the SSOP-8 type.
| Supply voltage range | 1.65 to 5.5 V |
|---|---|
| Operating temperature range | -40 to +85°C |
| Package type | SSOP-8 pin |
| Output current (at 5.5 V) | +12 mA |
| Number of gates | Dual (two) |
The recommended operating supply voltage range is 1.65 V to 5.5 V.
The device is supplied in an SSOP-8 pin package.
Yes, the low voltage and high-speed operation is suitable for battery powered products.
