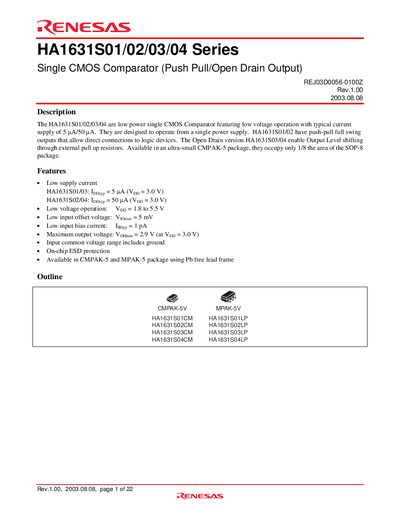

The HA1631S01/02/03/04 are low power single CMOS Comparators featuring low voltage operation with typical current supply of 5 µA/50 µA. They are designed to operate from a single power supply. HA1631S01/02 have push-pull full swing outputs that allow direct connections to logic devices. The Open Drain version HA1631S03/04 enable Output Level shifting through external pull up resistors. Available in an ultra-small CMPAK-5 package, they occupy only 1/8 the area of the SOP-8 package.
The document describes the HA1631S01/02/03/04 series as low power single CMOS comparators featuring low voltage operation with a typical supply current of 5 µA or 50 µA. The series includes push-pull full swing output versions (HA1631S01/02) and open drain output versions (HA1631S03/04), designed to operate from a single power supply between 1.8 V and 5.5 V.
| Supply Current (HA1631S01/03) | 5 µA typical at Vpp = 3.0V |
|---|---|
| Supply Current (HA1631S02/04) | 50 µA typical at Vpp = 3.0V |
| Operating Voltage Range | 1.8 to 5.5 V |
| Input Offset Voltage (Max) | 5 mV |
| Operating Temperature Range | -40 to +85 °C |
| Package Types | CMPAK-5 and MPAK-5 |
The typical supply current is 5 µA at Vpp = 3.0V.
The maximum output voltage is 2.9 V when Vpp = 3.0V.
