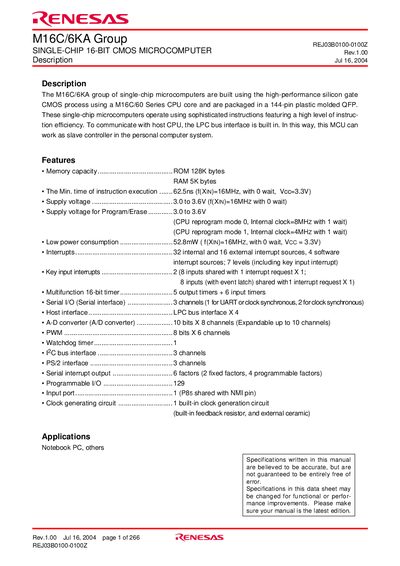

The M16C/6KA group of single-chip microcomputers are built using the high-performance silicon gate CMOS process using a M16C/60 Series CPU core and are packaged in a 144-pin plastic molded QFP. These single-chip microcomputers operate using sophisticated instructions featuring a high level of instruction efficiency. To communicate with host CPU, the LPC bus interface is built in. In this way, this MCU can work as slave controller in the personal computer system. Features include 128K bytes of ROM and 5K bytes of RAM.
This document describes the M16C/6KA group of single-chip microcomputers built using high-performance silicon gate CMOS. These devices operate with sophisticated instructions for high efficiency and include an integrated LPC bus interface to function as a slave controller in personal computer systems.
The datasheet details the specifications, features, and block diagrams of the 144-pin plastic molded QFP package. Key capabilities include up to 128K bytes of flash memory, 5K bytes of RAM, multiple timers, A-D converters, and interfaces for I2C, PS/2, and serial communication.
| Memory Capacity (ROM) | 128K bytes |
|---|---|
| Memory Capacity (RAM) | 5K bytes |
| Min. time of instruction execution | 62.5ns |
| Supply voltage | 3.0 to 3.6V |
| Low power consumption | 52.8mW |
| Interrupt sources | 32 internal and 16 external |
| A-D converter channels | 8 bits X 6 channels |
| Package type | 144-pin plastic molded QFP |
The minimum time of instruction execution is 62.5ns when f(XIN)=16MHz with 0 wait and Vcc=3.3V.
The M16C/6KA group is suitable for Notebook PC and other applications.
