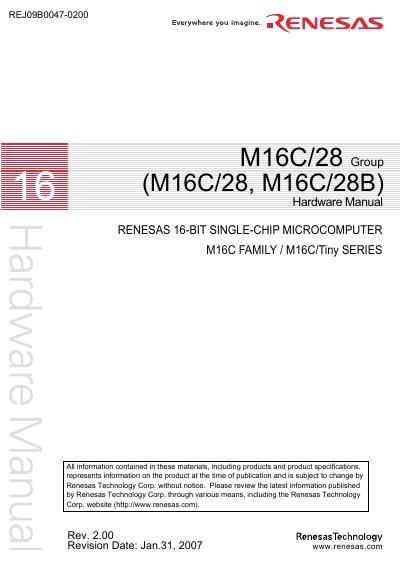

RENESAS M16C/28 Group (M16C/28 M16C/28B) handbook
This hardware manual provides detailed information on the Renesas M16C/28 family of 16‑bit single‑chip microcontrollers. It includes an overview of the product, block diagrams, pin assignments, register descriptions, and electrical characteristics, aimed at engineers designing systems that incorporate these MCUs.
The document also contains general handling precautions, such as proper treatment of unused pins, power‑on processing, and restrictions on use in military or safety‑critical applications. It references related software manuals and application notes for further development guidance.
Renesas M16C specifications
| Memory Capacity (ROM) | 128K bytes |
|---|---|
| Memory Capacity (RAM) | 5K bytes |
| Min. time of instruction execution | 62.5ns |
| Supply voltage | 3.0 to 3.6V |
| Low power consumption | 52.8mW |
| Interrupt sources | 32 internal and 16 external |
| A-D converter channels | 8 bits X 6 channels |
| Package type | 144-pin plastic molded QFP |
Source: Renesas M16C/6KA Group Single-Chip 16-Bit CMOS Microcomputer Description Handbook
All Renesas M16C documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- RENESAS - R8C/12 Group RENESAS 16-BIT SINGLE-CHIP MICROCOMPUTER M16C FAMILY R8C /Tiny SERIES 198 p
- Renesas M16C/26A Hardware Manual 352 p
- RENESAS M16C/62P Group (M16C/62P M16C/62PT) Hardware Manual 421 p
- RENESAS M16C/26A M16C/26B M16C/26T solutions manual 352 p
- RENESAS M16C/28 Group (M16C/28 M16C/28B) handbook 423 p
- Renesas M16C/62P/62PT Single-Chip 16-Bit CMOS Microcomputer Hardware Manual 101 p
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the minimum instruction execution time?
The minimum time of instruction execution is 62.5ns when f(XIN)=16MHz with 0 wait and Vcc=3.3V.
From: Renesas M16C/6KA Group Single-Chip 16-Bit CMOS Microcomputer Description Handbook
What applications are supported by this microcomputer?
The M16C/6KA group is suitable for Notebook PC and other applications.
From: Renesas M16C/6KA Group Single-Chip 16-Bit CMOS Microcomputer Description Handbook
What is the supply voltage range for the M16C/80 microcontroller?
The device operates from 4.2 V to 5.5 V (with f(XIN)=20 MHz).
How many basic instructions does the M16C/80 support?
It supports 106 basic instructions.
What information does the R8C/12 hardware manual provide?
It provides detailed information on registers, pin assignments, memory maps, peripheral specifications, electrical characteristics, and timing charts for the R8C/12 microcontroller.
From: RENESAS - R8C/12 Group RENESAS 16-BIT SINGLE-CHIP MICROCOMPUTER M16C FAMILY R8C /Tiny SERIES
What microcontroller is used on the Renesas M16C/62P Starter Kit?
The kit uses the M30626FJPGP microcontroller.
