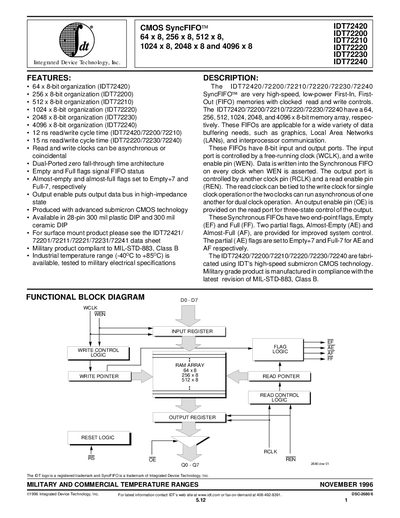

IDT72420/22200/22210/22220/22230/22240 is a CMOS SyncFIFO with 64 x 8, 256 x 8, 512 x 8, 1024 x 8, 2048 x 8 and 4096 x 8 organizations.
The SyncFIFO™ family from Integrated Device Technology provides high‑speed, low‑power FIFO memories in 64 × 8, 256 × 8, 512 × 8, 1024 × 8, 2048 × 8 and 4096 × 8‑bit organizations. They support both single‑clock and dual‑clock operation, dual‑ported architecture, and include Empty, Full, Almost‑Empty and Almost‑Full status flags.
Key features include a 12 ns (or 15 ns for larger devices) read/write cycle time, industrial temperature range (‑40 °C to +85 °C) and military‑grade operation (‑55 °C to +125 °C), 5 V + 10 % supply, and options for width and depth expansion using multiple devices.
| Organization | 64 × 8, 256 × 8, 512 × 8, 1024 × 8, 2048 × 8, 4096 × 8 bits |
|---|---|
| Read/Write Cycle Time | 12 ns (IDT72420/72200/72210), 15 ns (IDT72220/72230/72240) |
| Industrial Temperature Range | -40 °C to +85 °C |
| Military Temperature Range | -55 °C to +125 °C |
| Supply Voltage | 5 V + 10 % |
| Input Leakage Current | Typical 10 pA |
| Active Power Supply Current | 80 – 100 mA |
| Maximum Clock Frequency | Up to 83.3 MHz |
The IDT72420 operates with a 12 ns read/write cycle time.
The IDT72420 FIFO stores 64 words of 8‑bit data.
