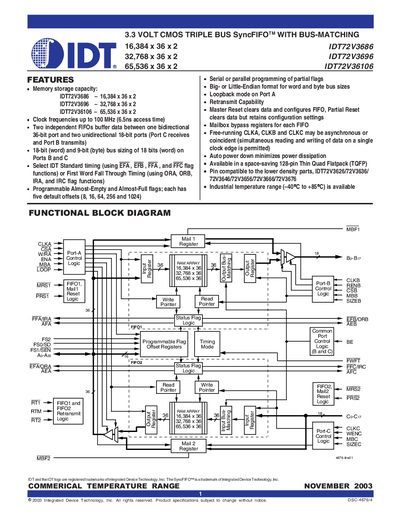

IDT72V3686/96/106 3.3 VOLT CMOS TRIPLE BUS SyncFIFOTM WITH BUS-MATCHING, is an integrated circuit product produced by IDT company. It has the following features: 1. Storage capacity: IDT72V3686 - 16,384 x 36 x 2 IDT72V3696 - 32,768 x 36 x 2 IDT72V36106 - 65,536 x 36 x 2 2. Clock frequency: up to 100MHz (6.5ns access time) 3. Independent FIFO buffers can be used between a bidirectional 36-bit port and two unidirectional 18-bit ports (Port C receives and Port B transmits) 4. Supports 18-bit (word) and 9-bit (byte) bus sizing, 18 bits (word) on Ports B and C 5. Select IDT Standard Timing (using EFA, EFB, FFA, and FFC flag functions) or First Word Fall Through Timing (using ORA, ORB, IRA, and IRC flag functions) 6. Programmable Almost-Empty and Almost-Full flags, each with five default offsets (8, 16, 64, 256, and 1024) 7. Serial or parallel programming of partial flags 8. Big- or Little-Endian format for word and byte bus sizes 9. Loopback mode on Port A 10. Retransmit Capability 11. Master Reset clears data and configures FIFO, Partial Reset clears data but retains configuration settings 12. Mailbox bypass register
The IDT72V3686/IDT72V3696/IDT72V36106 are monolithic, high-speed, low-power CMOS Triple Bus synchronous FIFO memory devices designed for 3.3V supply operation. They support clock frequencies up to 100 MHz and feature read access times as fast as 6.5ns.
| Memory storage capacity (IDT72V3686) | 16,384 x 36 x 2 |
|---|---|
| Memory storage capacity (IDT72V3696) | 32,768 x 36 x 2 |
| Memory storage capacity (IDT72V36106) | 65,536 x 36 x 2 |
| Clock frequencies | up to 100 MHz |
| Access time | 6.5ns |
| Supply voltage | 3.3V |
| Package type | 128-pin Thin Quad Flatpack (TQFP) |
The devices are characterized for operation from 0°C to 70°C.
Yes, the industrial temperature range is -40°C to +85°C and is available by special order.
