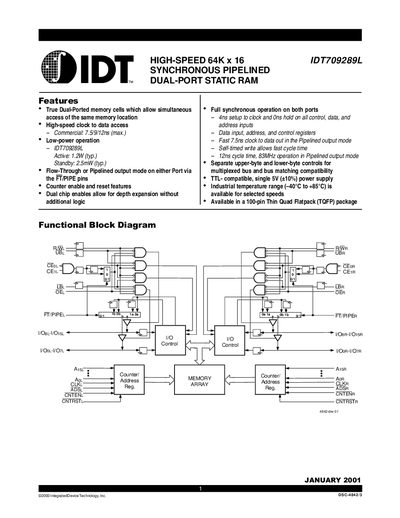

This document introduces the high-speed 64K x 16 synchronous pipelined dual-port static RAM product from IDT, which features high-speed access, low power operation, and pipelined output mode.
The IDT IDT709289L is a high-speed 64K x 16 bit synchronous Dual-Port Static RAM designed for applications requiring simultaneous access of any address from both ports. The device utilizes dual-port memory cells to allow concurrent read/write operations, featuring registers on control, data, and address inputs to minimize setup and hold times.
| Memory Capacity | 64K x 16 bit |
|---|---|
| Supply Voltage (Commercial) | 5.0V + 10% |
| Supply Voltage (Industrial) | 5.0V + 10% |
| Operating Temperature (Commercial) | 0°C to +70°C |
| Operating Temperature (Industrial) | -40°C to +85°C |
| Package Type | 100-pin Thin Quad Flatpack (TQFP) |
The maximum clock to data access time for commercial versions is 7.5ns, 9ns, or 12ns.
The device typically operates on 1.2W of power in active mode.
