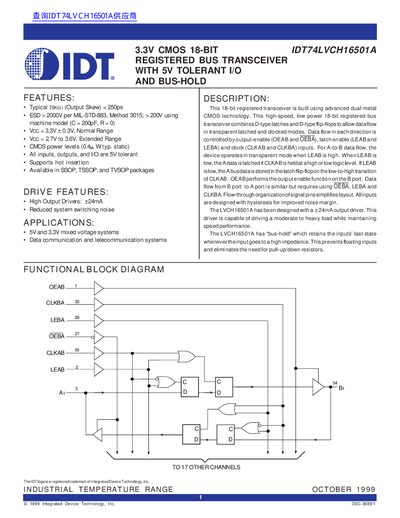

IDT74LVCH16501A is a 3.3V CMOS 18-bit registered bus transceiver with 5V tolerant I/O and bus-hold, and it can operate in industrial temperature range. Its features include: typical tSK(o) (output skew) <250ps, ESD>2000V per MIL-STD-883, Method 3015; >200V using machine model (C = 200pF, R = 0), VCC = 3.3V ± 0.3V, Normal Range, VCC = 2.7V to 3.6V, Extended Range, CMOS power levels (0.4µµµµµ W typ. static), all inputs, outputs, and I/O are 5V tolerant, supports hot insertion, and available in SSOP, TSSOP, and TVSOP packages.
This document describes the IDT74LVCH16501A, a high-speed, low power 18-bit registered bus transceiver built using advanced dual metal CMOS technology. The device combines D-type latches and D-type flip-flops to allow data flow in transparent latched and clocked modes between two buses (A and B). It features 5V tolerant inputs and outputs, supporting hot insertion in mixed voltage systems.
| Supply Voltage (Extended Range) | 2.7V to 3.6V |
|---|---|
| Output Skew (Typical) | < 250ps |
| ESD Rating (Machine Model) | > 200V |
| Output Driver Current | +24mA |
| Operating Temperature Range | -40°C to +85°C |
Yes, the device supports hot insertion.
All inputs, outputs, and /O are 5V tolerant.
