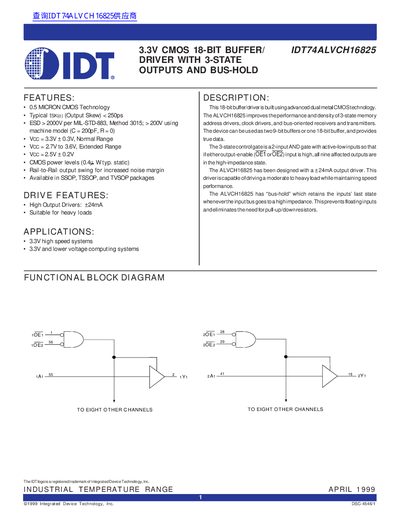

IDT74ALVCH16825 3.3V CMOS 18-bit buffer/driver with 3-state outputs and bus-hold
The IDT74ALVCH16825 is an 18-bit buffer/driver built using advanced dual metal CMOS technology. It improves the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The device can be used as two 9-bit buffers or one 18-bit buffer.
| Technology | 0.5 MICRON CMOS Technology |
|---|---|
| Output Skew (Typical) | < 250ps |
| ESD Protection | > 2000V per MIL-STD-883, Method 3015 |
| Supply Voltage (Normal) | 3.3V + 0.3V |
| Output Driver Current | +24mA |
| Operating Temperature | -40°C to +85°C |
The typical output skew (tsk(o)) is less than 250ps.
Yes, the device can be used as two 9-bit buffers or one 18-bit buffer.
Yes, it includes 'bus-hold' which retains the inputs' last state when the input bus goes to a high impedance.
