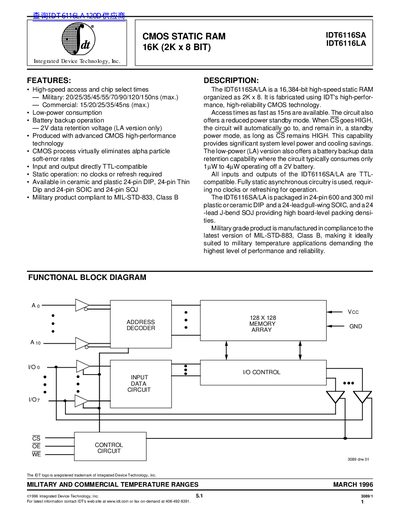

IDT6116SA/LA is a high-performance static RAM manufactured by IDT company using CMOS technology. It has fast access and low power consumption. The product has military and commercial temperature ranges and meets the MIL-STD-833, Class B standard.
The IDT6116SA/LA is a 16,384-bit high-speed static RAM organized as 2K x 8 bits. It is fabricated using IDT's advanced CMOS technology to provide high performance and reliability. The device features fully static asynchronous circuitry requiring no clocks or refreshing for operation.
| Capacity | 16,384-bit (2K x 8) |
|---|---|
| Operating Temperature (Commercial) | 0°C to +70°C |
| Operating Temperature (Military) | -55°C to +125°C |
| Supply Voltage | 4.5V to 5.5V |
| Access Time (Commercial) | 15ns to 35ns |
| Access Time (Military) | 20ns to 150ns |
| Package Types | DIP, SOIC, SOJ |
No, it uses fully static asynchronous circuitry requiring no clocks or refreshing for operation.
Access times range from 15ns to 150ns depending on the specific model and temperature grade.
Yes, the LA version offers battery backup data retention capability with very low power consumption.
