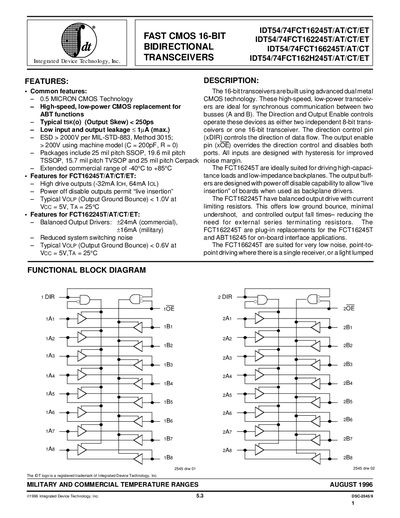

FCT16245T/2245T/6245T are 16-bit transceivers built using advanced dual metal CMOS technology. These high-speed, low-power transceivers are ideal for synchronous communication between two busses (A and B).
The IDT 54/74FCT16245T/AT/CT/ET family are fast CMOS 16‑bit bidirectional transceivers designed for high‑speed, low‑power communication between two buses. They feature direction and output‑enable control pins, balanced or high‑drive output options, and optional Bus Hold functionality.
Key features include 0.5 µm CMOS technology, typical output skew under 250 ps, low input and output leakage, and ESD protection above 2000 V. Electrical specifications cover input thresholds, output drive currents, power‑supply characteristics, and switching times for both commercial and military temperature ranges.
| Technology | 0.5 µm CMOS |
|---|---|
| Typical Output Skew | < 250 ps |
| Input Leakage | < 1 A (max) |
| ESD Rating | > 2000 V (MIL‑STD‑883) |
| Operating Temperature (Commercial) | -40 °C to +85 °C |
| Operating Temperature (Military) | -55 °C to +125 °C |
| FCT16245T Output Drive | -32 mA IOH, 64 mA IOL |
| FCT162245T Output Drive (Commercial) | +24 mA |
| Bus Hold Feature | Retains last active bus state |
The FCT16245T provides a high‑drive output of –32 mA IOH and 64 mA IOL.
Yes, the Bus Hold feature retains the last active bus state, eliminating the need for external pull‑up or pull‑down resistors.
It meets an ESD rating of greater than 2000 V according to MIL‑STD‑883.
