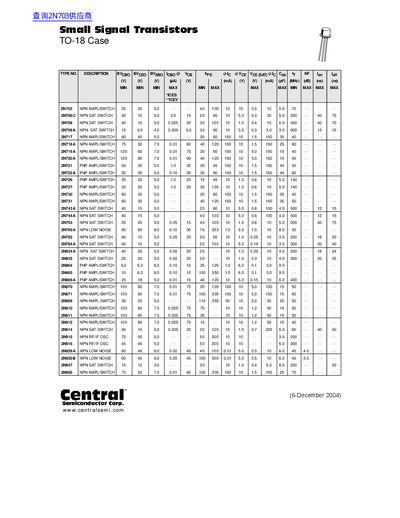

Central Semiconductor TO-18 Case Small Signal Transistors Data Sheet

About this manual

This document provides specifications for a range of small‑signal transistors packaged in a TO‑18 case. Both NPN and PNP devices are listed with their maximum ratings, electrical parameters and typical performance figures.

The tables include values such as collector‑emitter voltage (VCE), collector current (IC), base‑emitter voltage (VBE), gain (hFE), capacitances and transition frequencies for each part number.

What's inside

• Maximum Ratings
• Electrical Characteristics
• Performance Data
• Transistor Types
• Parameter Table

Frequently asked questions

What is the maximum collector‑emitter voltage (VCE) for the 2N703 transistor?

The 2N703 transistor has a maximum VCE of 40 V.

What is the maximum collector current (IC) for the 2N708 transistor?

The 2N708 transistor can handle up to 120 mA of collector current.
