This datasheet lists the various types, test current, maximum DC current, voltage and resistance parameters of the Central Semiconductor Corp. TM 116 series Zener diodes.

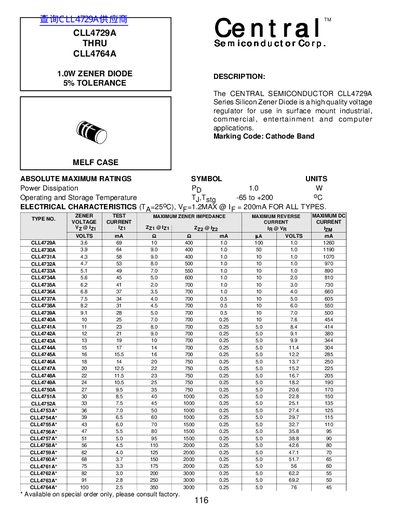

This document provides specifications for the Central Semiconductor CLL4729A Series Silicon Zener Diode, which serves as a high-quality voltage regulator. The devices are designed in a MELF case and are intended for surface mount applications in industrial, commercial, entertainment, and computer environments.
The datasheet lists absolute maximum ratings, including a power dissipation of 1.0W and an operating temperature range from -65 to +200°C. It also details electrical characteristics such as zener test voltage, zener impedance, reverse current, and leakage current for various model numbers ranging from CLL4729A (36V) to CLL4764A (100V).
| Power Dissipation | 1.0 W |
|---|---|
| Operating and Storage Temperature | -65 to +200 °C |
The absolute maximum power dissipation is 1.0 W.
These diodes operate and store between -65 to +200 °C.
