This document describes the SUPER mini SUPER TM NEW SMA CASE SCHOTTKY BARRIER RECTIFIER product series from Central Semiconductor Corp., including models CMSH1-20M, CMSH1-40M, and CMSH1-60M. The product features a super miniature case, superior lot to lot consistency, low cost, high reliability, and is suitable for various applications in the commercial, industrial, entertainment, computer, and automotive fields.

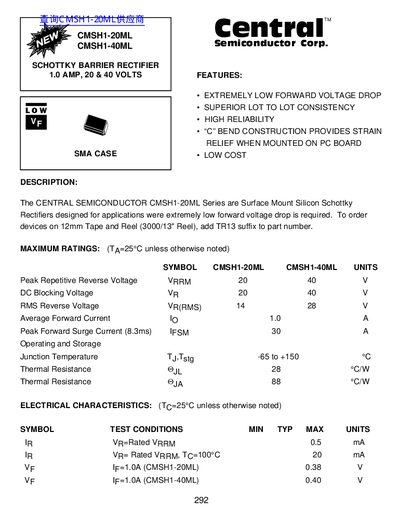

This document provides technical specifications for the Central Semiconductor Corp. CMSH1 Series, which includes the CMSH1-20ML (20V) and CMSH1-40ML (40V) models. These are surface mount silicon Schottky rectifiers designed for applications requiring extremely low forward voltage drop.
| Peak Repetitive Reverse Voltage (VRRM) | 20 V / 40 V |
|---|---|
| Average Forward Current (Io) | 1.0 A |
| Peak Forward Surge Current (IFSM) | 30 A |
| Operating and Storage Junction Temperature Range | -65 to +150 °C |
| Typical Forward Voltage Drop (VE) | 0.38 V / 0.40 V |
The typical forward voltage drop (VE) at IF=1.0A is 0.40 V.
Add the TR13 suffix to the part number.
